Learning Objectives

By the end of this tutorial, you will:

  1. Understand how each DDM parameter influences decision outcomes

  2. Visualize the effects of parameter changes on RT distributions and accuracy

  3. Interpret parameter values in cognitive terms

  4. Predict how parameter combinations affect behavior

  5. Apply this knowledge to design and interpret DDM studies

Introduction: The Anatomy of a Decision

Imagine you’re playing a simple video game where dots move across the screen, and you must quickly decide: are most dots moving left or right? This seemingly simple task involves multiple cognitive processes:

  1. Evidence accumulation: Your brain samples information about dot motion

  2. Decision threshold: You need “enough” evidence before committing

  3. Starting bias: You might expect one direction more than another

  4. Motor execution: Physical time to press the response button

The Diffusion Decision Model (DDM) elegantly captures these processes with just a few parameters. Let’s explore each one!

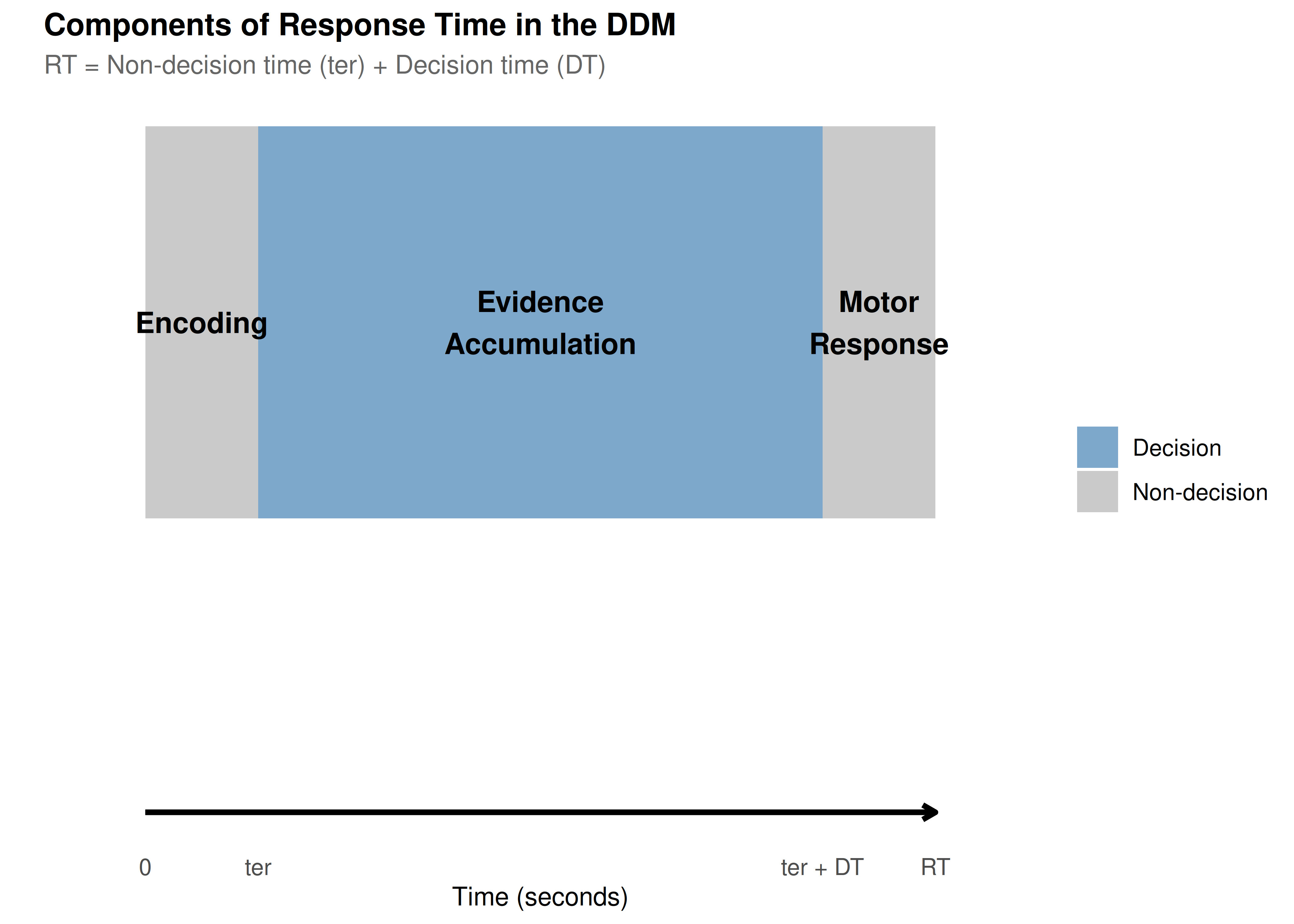

# Create a conceptual diagram of the DDM process
create_ddm_conceptual_diagram <- function() {
  # Create timeline data
  timeline_data <- data.frame(
    stage = c("Encoding", "Evidence\nAccumulation", "Motor\nResponse"),
    start = c(0, 0.1, 0.6),
    end = c(0.1, 0.6, 0.7),
    y = c(1, 1, 1),
    color = c("Non-decision", "Decision", "Non-decision")
  )

  # Create the plot
  ggplot(timeline_data) +
    geom_rect(aes(xmin = start, xmax = end, ymin = 0.8, ymax = 1.2, fill = color),
              alpha = 0.7) +
    geom_text(aes(x = (start + end)/2, y = y, label = stage),
              size = 4, fontface = "bold") +
    geom_segment(aes(x = 0, xend = 0.7, y = 0.5, yend = 0.5),
                 arrow = arrow(length = unit(0.2, "cm")),
                 size = 1) +
    scale_x_continuous(breaks = c(0, 0.1, 0.6, 0.7),
                       labels = c("0", "ter", "ter + DT", "RT"),
                       limits = c(-0.05, 0.75)) +
    scale_fill_manual(values = c("Decision" = "steelblue",
                                 "Non-decision" = "gray70")) +
    labs(title = "Components of Response Time in the DDM",
         subtitle = "RT = Non-decision time (ter) + Decision time (DT)",
         x = "Time (seconds)",
         y = "") +
    theme(axis.text.y = element_blank(),
          axis.ticks.y = element_blank(),
          panel.grid = element_blank(),
          legend.title = element_blank(),
          plot.title = element_text(size = 12),
          plot.subtitle = element_text(size = 10))
}

create_ddm_conceptual_diagram()

Setting Up Our Baseline Model

Let’s establish a baseline set of parameters that we’ll use throughout this tutorial:

# Define baseline parameters with clear documentation
baseline_params <- list(
  # Core parameters
  mean_v = 0.15,      # Moderate positive drift (slightly favors upper boundary)
  a = 0.7,            # Moderate threshold (balance of speed/accuracy)
  mean_z = 0.35,       # Unbiased starting point (middle of threshold)

  # Noise and timing
  s = 0.25,            # Within-trial noise (standard for scaling)
  mean_ter = 0.2,     # 200ms non-decision time

  # Variability parameters (set to 0 for baseline)
  sv = 0,             # No drift variability
  sz = 0,             # No starting point variability
  st0 = 0,            # No non-decision time variability

  # Simulation parameters
  dt = 0.001,         # High precision time step
  n_trials = 1000     # Sufficient for stable distributions
)

# Create a summary table
param_table <- data.frame(
  Parameter = c("Drift rate (v)", "Threshold (a)", "Starting point (z)",
                "Noise (s)", "Non-decision time (ter)"),
  Symbol = c("v", "a", "z", "s", "ter"),
  Baseline = c(0.15, 1.0, 0.5, 0.1, 0.2),
  Interpretation = c(
    "Quality of evidence (positive = favors upper)",
    "Amount of evidence required",
    "Initial bias (0.5 = unbiased)",
    "Moment-to-moment variability",
    "Time for encoding + motor response"
  )
)

kable(param_table, caption = "Baseline DDM Parameters")
Baseline DDM Parameters
Parameter Symbol Baseline Interpretation
Drift rate (v) v 0.15 Quality of evidence (positive = favors upper)
Threshold (a) a 1.00 Amount of evidence required
Starting point (z) z 0.50 Initial bias (0.5 = unbiased)
Noise (s) s 0.10 Moment-to-moment variability
Non-decision time (ter) ter 0.20 Time for encoding + motor response

Now let’s simulate our baseline model:

set.seed(2024)  # For reproducibility

# Simulate baseline data
baseline_data <- do.call(
  simulate_diffusion_experiment_variable,
  c(baseline_params)
)

# Add descriptive labels
baseline_data$condition <- "Baseline"
baseline_data$param_set <- "Baseline"

# Summary statistics
baseline_summary <- baseline_data %>%
  filter(!is.na(choice)) %>%
  summarise(
    n_valid = n(),
    prop_upper = mean(choice == 1),
    mean_rt = mean(rt),
    median_rt = median(rt),
    rt_10 = quantile(rt, 0.1),
    rt_90 = quantile(rt, 0.9),
    .groups = 'drop'
  )

cat("Baseline Model Summary:\n")
## Baseline Model Summary:
cat("- Valid trials:", baseline_summary$n_valid, "\n")
## - Valid trials: 972
cat("- Upper boundary choices:", percent(baseline_summary$prop_upper), "\n")
## - Upper boundary choices: 84%
cat("- Mean RT:", round(baseline_summary$mean_rt, 3), "s\n")
## - Mean RT: 1.712 s
cat("- RT range (10th-90th percentile):",
    round(baseline_summary$rt_10, 3), "-",
    round(baseline_summary$rt_90, 3), "s\n")
## - RT range (10th-90th percentile): 0.673 - 3.178 s

Part 1: Drift Rate (v) - The Engine of Evidence

The drift rate represents how quickly and in which direction evidence accumulates. Think of it as the “signal strength” in your decision.

Cognitive Interpretation

  • Magnitude (|v|): Task difficulty or stimulus quality

    • High |v| → Clear evidence → Fast, accurate decisions

    • Low |v| → Ambiguous evidence → Slow, error-prone decisions

  • Sign: Direction of evidence

    • Positive v → Evidence favors upper boundary

    • Negative v → Evidence favors lower boundary

    • v = 0 → No systematic evidence (pure guessing)

Exploring Drift Rate Effects

# Define drift rate values to explore
drift_values <- c(-0.3, -0.1, 0, 0.1, 0.3)
drift_labels <- c("Strong Lower", "Weak Lower", "No Drift",
                  "Weak Upper", "Strong Upper")

# Simulate data for different drift rates
drift_data_list <- list()

for (i in seq_along(drift_values)) {
  params <- baseline_params
  params$mean_v <- drift_values[i]

  set.seed(2024 + i)
  sim_data <- do.call(
    simulate_diffusion_experiment_variable,
    c(params)
  )

  sim_data$drift_rate <- drift_values[i]
  sim_data$drift_label <- factor(drift_labels[i], levels = drift_labels)
  drift_data_list[[i]] <- sim_data
}

drift_data <- bind_rows(drift_data_list)

# Create comprehensive visualization
p1 <- ggplot(drift_data %>% filter(!is.na(choice)),
             aes(x = drift_label, fill = factor(choice))) +
  geom_bar(position = "fill", alpha = 0.8) +
  scale_fill_manual(values = c("0" = "coral", "1" = "steelblue"),
                    labels = c("Lower", "Upper")) +
  scale_y_continuous(labels = percent) +

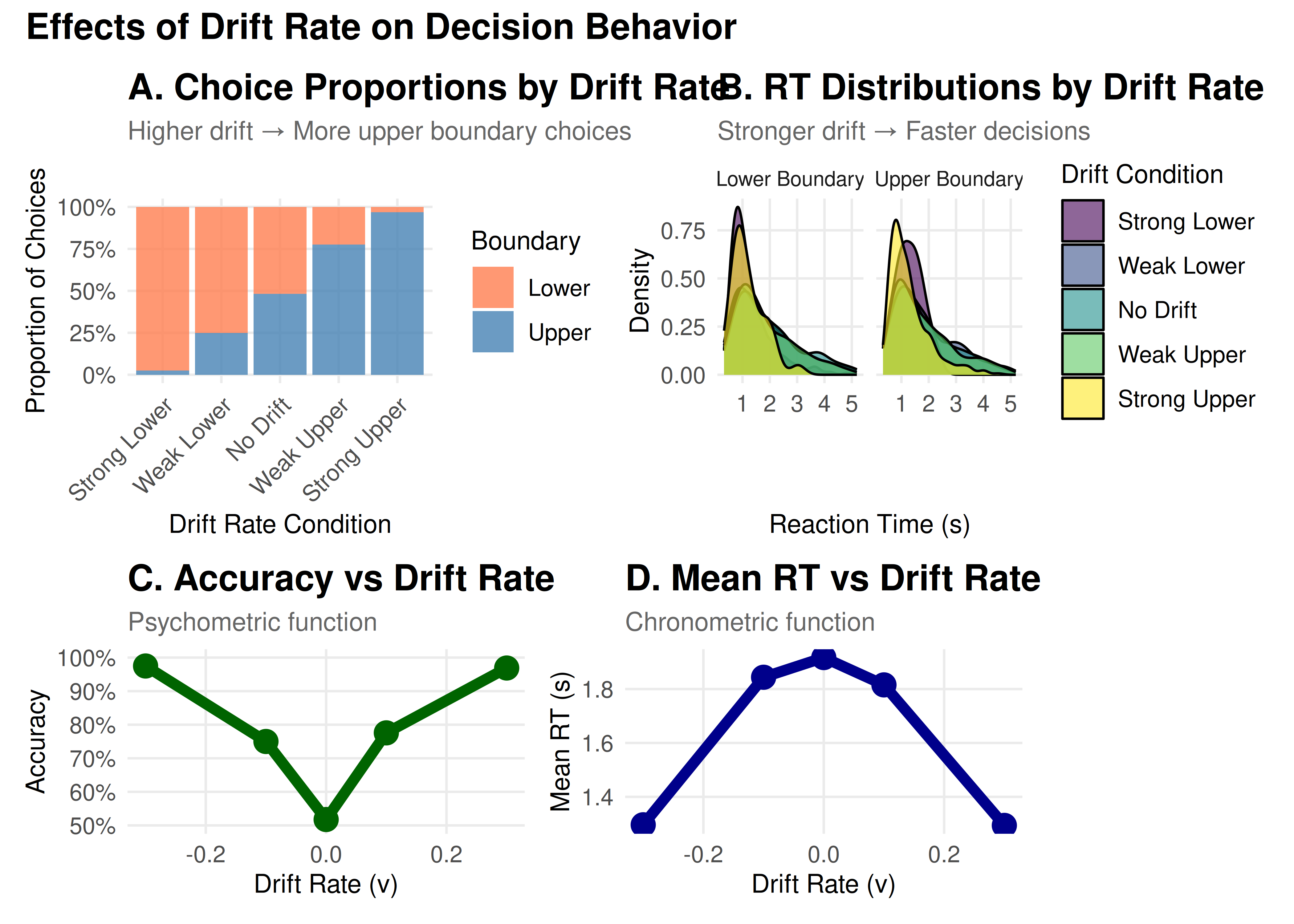

  labs(title = "A. Choice Proportions by Drift Rate",
       subtitle = "Higher drift → More upper boundary choices",
       x = "Drift Rate Condition",
       y = "Proportion of Choices",
       fill = "Boundary") +
  theme(axis.text.x = element_text(angle = 45, hjust = 1))

p2 <- ggplot(drift_data %>% filter(!is.na(choice)),
             aes(x = rt, fill = drift_label)) +
  geom_density(alpha = 0.6) +
  facet_wrap(~ factor(choice, labels = c("Lower Boundary", "Upper Boundary"))) +
  scale_fill_viridis_d() +
  #coord_cartesian(xlim = c(0, 2)) +
  labs(title = "B. RT Distributions by Drift Rate",
       subtitle = "Stronger drift → Faster decisions",
       x = "Reaction Time (s)",
       y = "Density",
       fill = "Drift Condition")

# Summary statistics plot
drift_summary <- drift_data %>%
  filter(!is.na(choice)) %>%
  group_by(drift_rate, drift_label) %>%
  summarise(
    accuracy = mean(choice == (drift_rate > 0)),
    mean_rt = mean(rt),
    .groups = 'drop'
  )

p3 <- ggplot(drift_summary, aes(x = drift_rate)) +
  geom_line(aes(y = accuracy), color = "darkgreen", size = 2) +
  geom_point(aes(y = accuracy), color = "darkgreen", size = 4) +
  scale_y_continuous(labels = percent, limits = c(0.5, 1)) +
  labs(title = "C. Accuracy vs Drift Rate",
       subtitle = "Psychometric function",
       x = "Drift Rate (v)",
       y = "Accuracy")

p4 <- ggplot(drift_summary, aes(x = drift_rate)) +
  geom_line(aes(y = mean_rt), color = "darkblue", size = 2) +
  geom_point(aes(y = mean_rt), color = "darkblue", size = 4) +
  labs(title = "D. Mean RT vs Drift Rate",
       subtitle = "Chronometric function",
       x = "Drift Rate (v)",
       y = "Mean RT (s)")

# Combine plots
(p1 + p2) / (p3 + p4) +
  plot_annotation(
    title = "Effects of Drift Rate on Decision Behavior",
    theme = theme(plot.title = element_text(size = 14, face = "bold"))
  )

Key Insights: Drift Rate

  1. Choice Probability: Follows a sigmoid (S-shaped) curve

  2. Reaction Times: Decrease with increasing |v|

  3. Accuracy: Approaches chance (50%) as v → 0

  4. Symmetry: Effects are symmetric around v = 0

Part 2: Threshold Separation (a) - The Speed-Accuracy Tradeoff

The threshold separation controls how much evidence is required before making a decision. It’s the primary parameter controlling the speed-accuracy tradeoff.

Cognitive Interpretation

  • High threshold (large a): Conservative strategy

    • More evidence required → Slower but more accurate

    • “I want to be sure before I respond”

  • Low threshold (small a): Liberal strategy

    • Less evidence required → Faster but more error-prone

    • “I need to respond quickly”

# Define threshold values to explore
threshold_values <- c(0.5, 0.75, 1.0, 1.25, 1.5)
threshold_labels <- c("Very Liberal", "Liberal", "Balanced",
                      "Conservative", "Very Conservative")

# Simulate data for different thresholds
threshold_data_list <- list()

for (i in seq_along(threshold_values)) {
  params <- baseline_params
  params$a <- threshold_values[i]
  params$mean_z <- threshold_values[i] / 2  # Keep unbiased

  set.seed(3024 + i)
  sim_data <- do.call(
    simulate_diffusion_experiment_variable,
    c(params)
  )

  sim_data$threshold <- threshold_values[i]
  sim_data$threshold_label <- factor(threshold_labels[i], levels = threshold_labels)
  threshold_data_list[[i]] <- sim_data
}

threshold_data <- bind_rows(threshold_data_list)

# Create visualizations
# Speed-Accuracy Tradeoff plot
threshold_summary <- threshold_data %>%
  filter(!is.na(choice)) %>%
  group_by(threshold, threshold_label) %>%
  summarise(
    accuracy = mean(choice == 1),  # Since v > 0
    mean_rt = mean(rt),
    rt_variability = sd(rt),
    .groups = 'drop'
  )

p1 <- ggplot(threshold_summary, aes(x = mean_rt, y = accuracy)) +
  geom_path(color = "gray50", size = 1, alpha = 0.5) +
  geom_point(aes(color = threshold), size = 5) +
  geom_text(aes(label = threshold_label),
            vjust = -1, hjust = 0.5, size = 3) +
  scale_color_viridis_c(name = "Threshold (a)") +
  #scale_y_continuous(labels = percent, limits = c(0.5, 1)) +

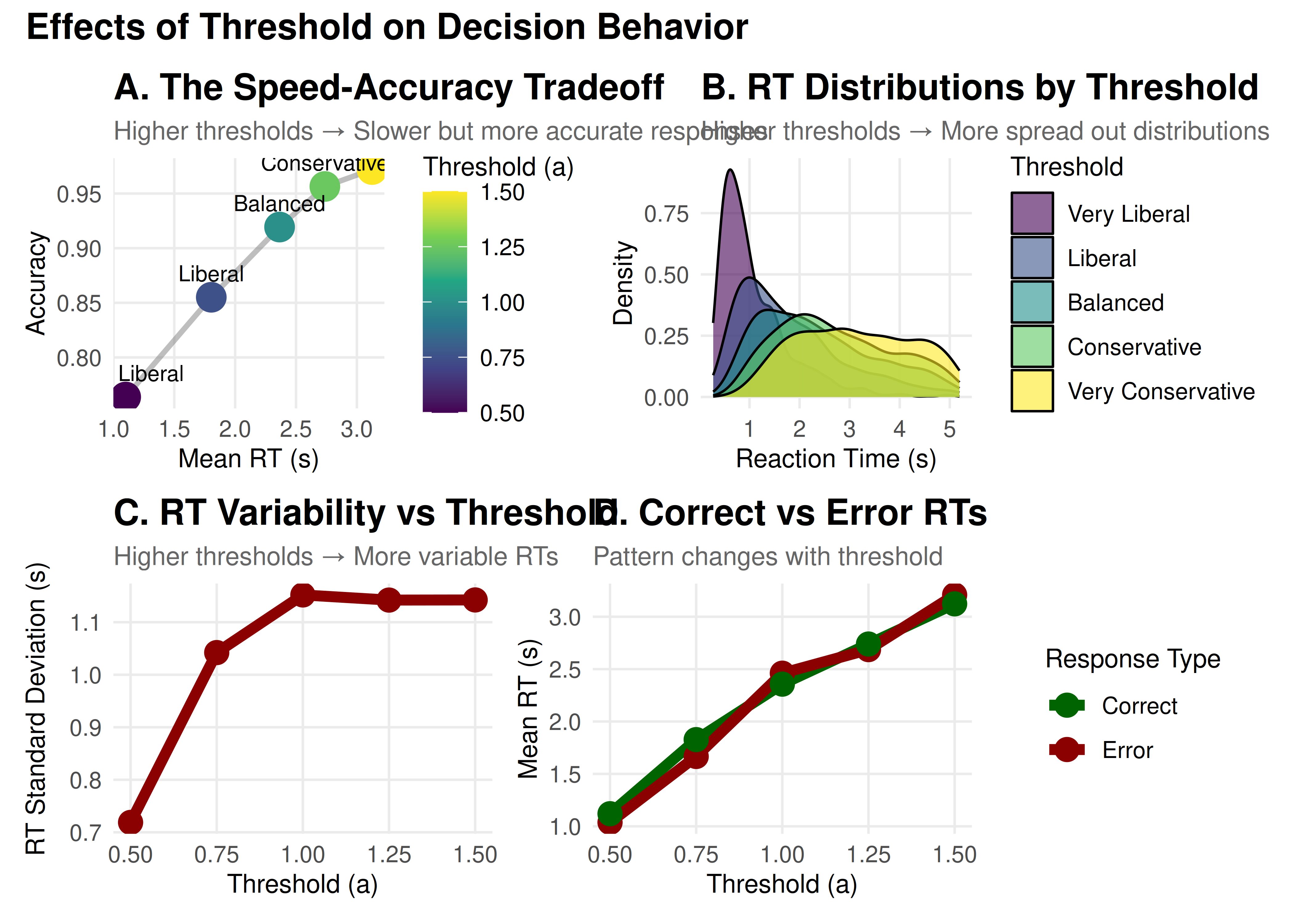

  labs(title = "A. The Speed-Accuracy Tradeoff",
       subtitle = "Higher thresholds → Slower but more accurate responses",
       x = "Mean RT (s)",
       y = "Accuracy")

# RT distributions
p2 <- ggplot(threshold_data %>% filter(!is.na(choice)),
             aes(x = rt, fill = threshold_label)) +
  geom_density(alpha = 0.6) +
  scale_fill_viridis_d() +
  #coord_cartesian(xlim = c(0, 3)) +
  labs(title = "B. RT Distributions by Threshold",
       subtitle = "Higher thresholds → More spread out distributions",
       x = "Reaction Time (s)",
       y = "Density",
       fill = "Threshold")

# RT variability
p3 <- ggplot(threshold_summary, aes(x = threshold, y = rt_variability)) +
  geom_line(color = "darkred", size = 2) +
  geom_point(color = "darkred", size = 4) +
  labs(title = "C. RT Variability vs Threshold",
       subtitle = "Higher thresholds → More variable RTs",
       x = "Threshold (a)",
       y = "RT Standard Deviation (s)")

# Error RT analysis
error_analysis <- threshold_data %>%
  filter(!is.na(choice)) %>%
  group_by(threshold, threshold_label, choice) %>%
  summarise(
    mean_rt = mean(rt),
    .groups = 'drop'
  ) %>%
  mutate(response_type = ifelse(choice == 1, "Correct", "Error"))

p4 <- ggplot(error_analysis, aes(x = threshold, y = mean_rt,
                                  color = response_type)) +
  geom_line(size = 2) +
  geom_point(size = 4) +
  scale_color_manual(values = c("Correct" = "darkgreen", "Error" = "darkred")) +
  labs(title = "D. Correct vs Error RTs",
       subtitle = "Pattern changes with threshold",
       x = "Threshold (a)",
       y = "Mean RT (s)",
       color = "Response Type")

# Combine plots
(p1 + p2) / (p3 + p4) +
  plot_annotation(
    title = "Effects of Threshold on Decision Behavior",
    theme = theme(plot.title = element_text(size = 14, face = "bold"))
  )

Key Insights: Threshold

  1. Speed-Accuracy Tradeoff: Fundamental relationship in decision-making

  2. RT Distributions: Become wider and more skewed with higher thresholds

  3. Error Patterns: Can shift between fast and slow errors

  4. Strategic Control: Reflects cognitive control and task demands

Part 3: Starting Point (z) - Decision Bias

The starting point determines where evidence accumulation begins, creating a bias toward one response.

Cognitive Interpretation

  • z = a/2: Unbiased (equidistant from both boundaries)

  • z > a/2: Biased toward upper boundary

  • z < a/2: Biased toward lower boundary

This can reflect:

  • Prior expectations (“I expect to see motion to the right”)

  • Reward asymmetries (“Correct responses pay more than errors”)

  • Strategic biases (“When unsure, guess ‘yes’”)

# Define starting point values
z_proportions <- c(0.2, 0.35, 0.5, 0.65, 0.8)
z_labels <- c("Strong Lower Bias", "Moderate Lower Bias", "Unbiased",
              "Moderate Upper Bias", "Strong Upper Bias")

# Simulate data
z_data_list <- list()

for (i in seq_along(z_proportions)) {
  params <- baseline_params
  params$mean_z <- z_proportions[i] * params$a

  set.seed(4024 + i)
  sim_data <- do.call(
    simulate_diffusion_experiment_variable,
    c(params)
  )

  sim_data$z_prop <- z_proportions[i]
  sim_data$z_label <- factor(z_labels[i], levels = z_labels)
  z_data_list[[i]] <- sim_data
}

z_data <- bind_rows(z_data_list)

# Visualizations
# Choice proportions
z_summary <- z_data %>%
  filter(!is.na(choice)) %>%
  group_by(z_prop, z_label) %>%
  summarise(
    prop_upper = mean(choice == 1),
    mean_rt_upper = mean(rt[choice == 1]),
    mean_rt_lower = mean(rt[choice == 0]),
    .groups = 'drop'
  )

p1 <- ggplot(z_summary, aes(x = z_prop, y = prop_upper)) +
  geom_line(color = "purple", size = 2) +
  geom_point(color = "purple", size = 4) +
  geom_hline(yintercept = 0.5, linetype = "dashed", alpha = 0.5) +
  scale_y_continuous(labels = percent, limits = c(0, 1)) +
  scale_x_continuous(labels = percent) +
  labs(title = "A. Choice Probability vs Starting Point",
       subtitle = "Bias creates preference for closer boundary",
       x = "Starting Point (z/a)",
       y = "P(Upper Boundary)")

# RT by response
z_rt_data <- z_data %>%
  filter(!is.na(choice)) %>%
  group_by(z_prop, z_label, choice) %>%
  summarise(mean_rt = mean(rt), .groups = 'drop') %>%
  mutate(response = ifelse(choice == 1, "Upper", "Lower"))

p2 <- ggplot(z_rt_data, aes(x = z_prop, y = mean_rt, color = response)) +
  geom_line(size = 2) +
  geom_point(size = 4) +
  scale_color_manual(values = c("Upper" = "steelblue", "Lower" = "coral")) +
  scale_x_continuous(labels = percent) +
  labs(title = "B. Mean RT by Response and Bias",
       subtitle = "Responses toward biased boundary are faster",
       x = "Starting Point (z/a)",
       y = "Mean RT (s)",
       color = "Response")

# Detailed RT distributions for extreme biases
p3 <- z_data %>%
  filter(!is.na(choice), z_prop %in% c(0.2, 0.5, 0.8)) %>%
  ggplot(aes(x = rt, fill = factor(choice))) +
  geom_density(alpha = 0.6) +
  facet_grid(z_label ~ ., scales = "free_y") +
  scale_fill_manual(values = c("0" = "coral", "1" = "steelblue"),
                    labels = c("Lower", "Upper")) +
  #coord_cartesian(xlim = c(0, 2)) +
  labs(title = "C. RT Distributions Under Different Biases",
       subtitle = "Bias affects both speed and frequency of responses",
       x = "Reaction Time (s)",
       y = "Density",
       fill = "Boundary")

# Bias effect visualization
p4 <- expand.grid(
  z_prop = seq(0.1, 0.9, 0.01),
  boundary = c("Lower", "Upper")
) %>%
  mutate(
    distance = ifelse(boundary == "Upper", 1 - z_prop, z_prop),
    expected_rt = 0.2 + distance * 2  # Simplified model
  ) %>%
  ggplot(aes(x = z_prop, y = expected_rt, color = boundary)) +
  geom_line(size = 2) +
  scale_color_manual(values = c("Upper" = "steelblue", "Lower" = "coral")) +
  scale_x_continuous(labels = percent) +
  labs(title = "D. Theoretical RT vs Starting Point",
       subtitle = "Distance to boundary determines speed",
       x = "Starting Point (z/a)",
       y = "Expected RT (arbitrary units)",
       color = "Boundary")

# Combine

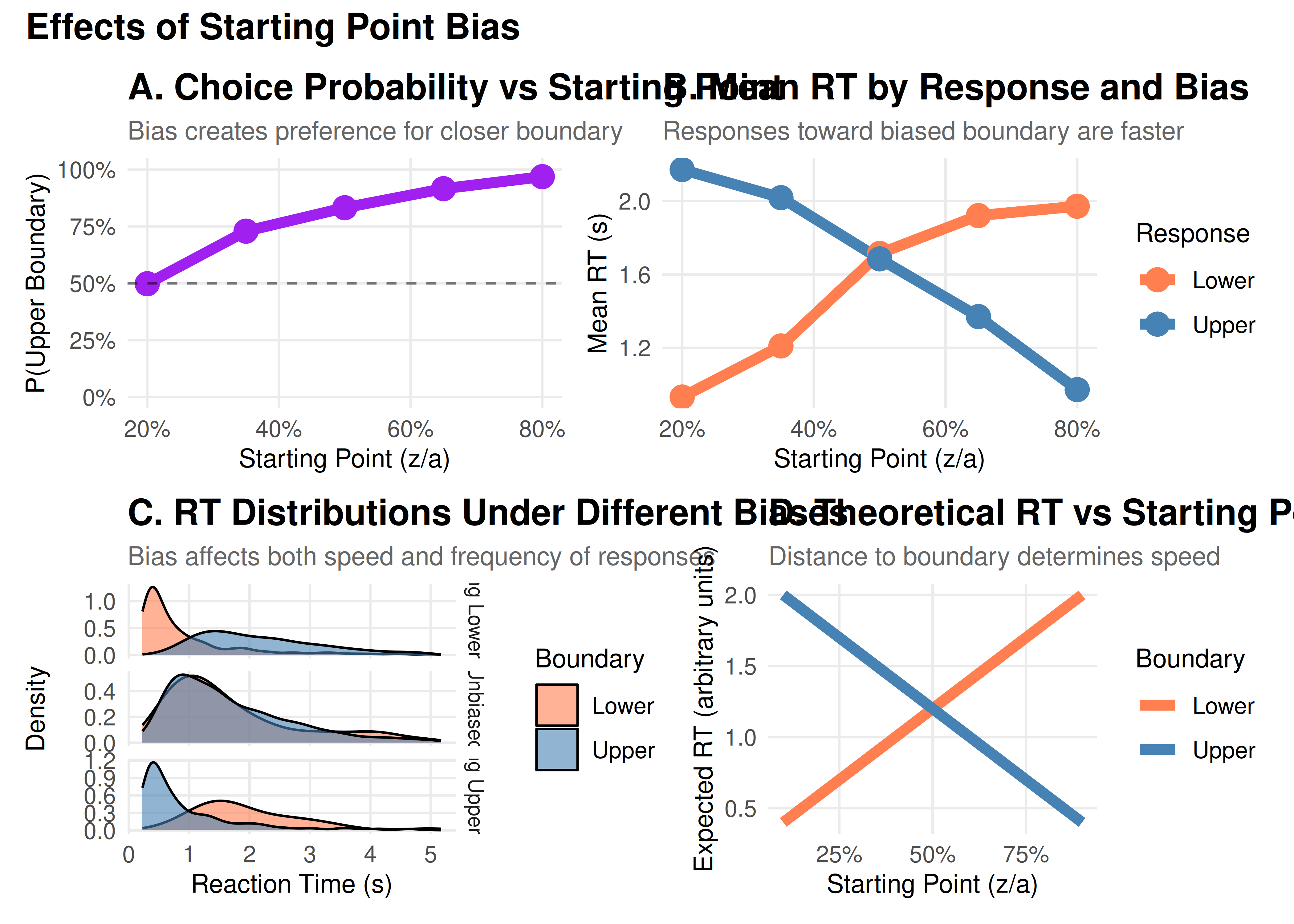

(p1 + p2) / (p3 + p4) +
  plot_annotation(
    title = "Effects of Starting Point Bias",
    theme = theme(plot.title = element_text(size = 14, face = "bold"))
  )

Part 4: Parameter Interactions

Parameters don’t work in isolation. Let’s explore some important interactions:

Understanding Parameter Interactions

Before diving into specific interactions, it’s important to note that real-world decisions often show trial-to-trial variability. The DDM captures this through three variability parameters:

  • Drift variability (sv): Fluctuations in evidence quality
  • Starting point variability (sz): Changes in initial bias
  • Non-decision time variability (st0): Variations in motor preparation

These variability parameters can significantly affect how the core parameters interact. For example, high drift variability can make the effects of bias more pronounced, while high starting point variability can lead to more errors.

# Create a grid of parameter combinations
interaction_grid <- expand.grid(
  drift = c(0.05, 0.2),
  threshold = c(0.7, 1, 1.3),
  bias = c(0.3, 0.5, 0.7)
) %>%
  mutate(
    condition = paste0("v=", drift, ", a=", threshold, ", z/a=", bias)
  )

# Simulate data for each combination
interaction_data_list <- list()

for (i in 1:nrow(interaction_grid)) {
  params <- baseline_params
  params$mean_v <- interaction_grid$drift[i]
  params$a <- interaction_grid$threshold[i]
  params$mean_z <- interaction_grid$bias[i] * interaction_grid$threshold[i]

  set.seed(6024 + i)
  sim_data <- do.call(
   simulate_diffusion_experiment_variable,
   c(params)
 )

 sim_data$drift <- interaction_grid$drift[i]
 sim_data$threshold <- interaction_grid$threshold[i]
 sim_data$bias <- interaction_grid$bias[i]
 sim_data$condition <- interaction_grid$condition[i]
 interaction_data_list[[i]] <- sim_data
}

interaction_data <- bind_rows(interaction_data_list)

# Analyze interactions
interaction_summary <- interaction_data %>%
 filter(!is.na(choice)) %>%
 group_by(drift, threshold, bias) %>%
 summarise(
   prop_upper = mean(choice == 1),
   mean_rt = mean(rt),
   accuracy = mean(choice == (drift > 0)),  # Fixed: Use drift direction to determine correct response
   .groups = 'drop'
 )

# Visualization 1: Drift × Threshold interaction
p1 <- interaction_summary %>%
 filter(bias == 0.5) %>%  # Unbiased only
 ggplot(aes(x = factor(drift), y = mean_rt, fill = factor(threshold))) +
 geom_bar(stat = "identity", position = "dodge", alpha = 0.8) +
 scale_fill_viridis_d(name = "Threshold") +
 labs(title = "A. Drift vs Threshold interaction on RT",
      subtitle = "Effect of drift is amplified with higher thresholds",
      x = "Drift Rate",
      y = "Mean RT (s)")

# Visualization 2: Bias × Drift interaction
p2 <- interaction_summary %>%
 filter(threshold == 1) %>%  # Middle threshold
 ggplot(aes(x = bias, y = prop_upper, color = factor(drift))) +
 geom_line(size = 2) +
 geom_point(size = 4) +
 scale_color_viridis_d(name = "Drift") +
 scale_x_continuous(labels = percent) +
 scale_y_continuous(labels = percent) +
 labs(title = "B. Bias vs Drift Interaction on Choice",
      subtitle = "Bias effect is stronger with weak drift",
      x = "Starting Point Bias (z/a)",
      y = "P(Upper Boundary)")

# Visualization 3: Three-way interaction heatmap
p3 <- interaction_summary %>%
 ggplot(aes(x = factor(drift), y = factor(bias), fill = mean_rt)) +
 geom_tile() +
 facet_wrap(~ paste("Threshold =", threshold)) +
 scale_fill_viridis_c(name = "Mean RT") +
 labs(title = "C. Three-Way Interaction: RT Patterns",
      subtitle = "Complex interplay between all parameters",
      x = "Drift Rate",
      y = "Starting Bias")

# Visualization 4: Interactive effects on accuracy
p4 <- interaction_summary %>%
 ggplot(aes(x = threshold, y = accuracy, color = factor(drift))) +
 geom_line(size = 2) +
 geom_point(size = 4) +
 facet_wrap(~ paste("Bias =", bias)) +
 scale_color_viridis_d(name = "Drift") +
 scale_y_continuous(labels = percent) +
 labs(title = "D. Parameter Effects on Accuracy",
      subtitle = "Accuracy depends on parameter combinations",
      x = "Threshold",
      y = "Accuracy")

# Combine

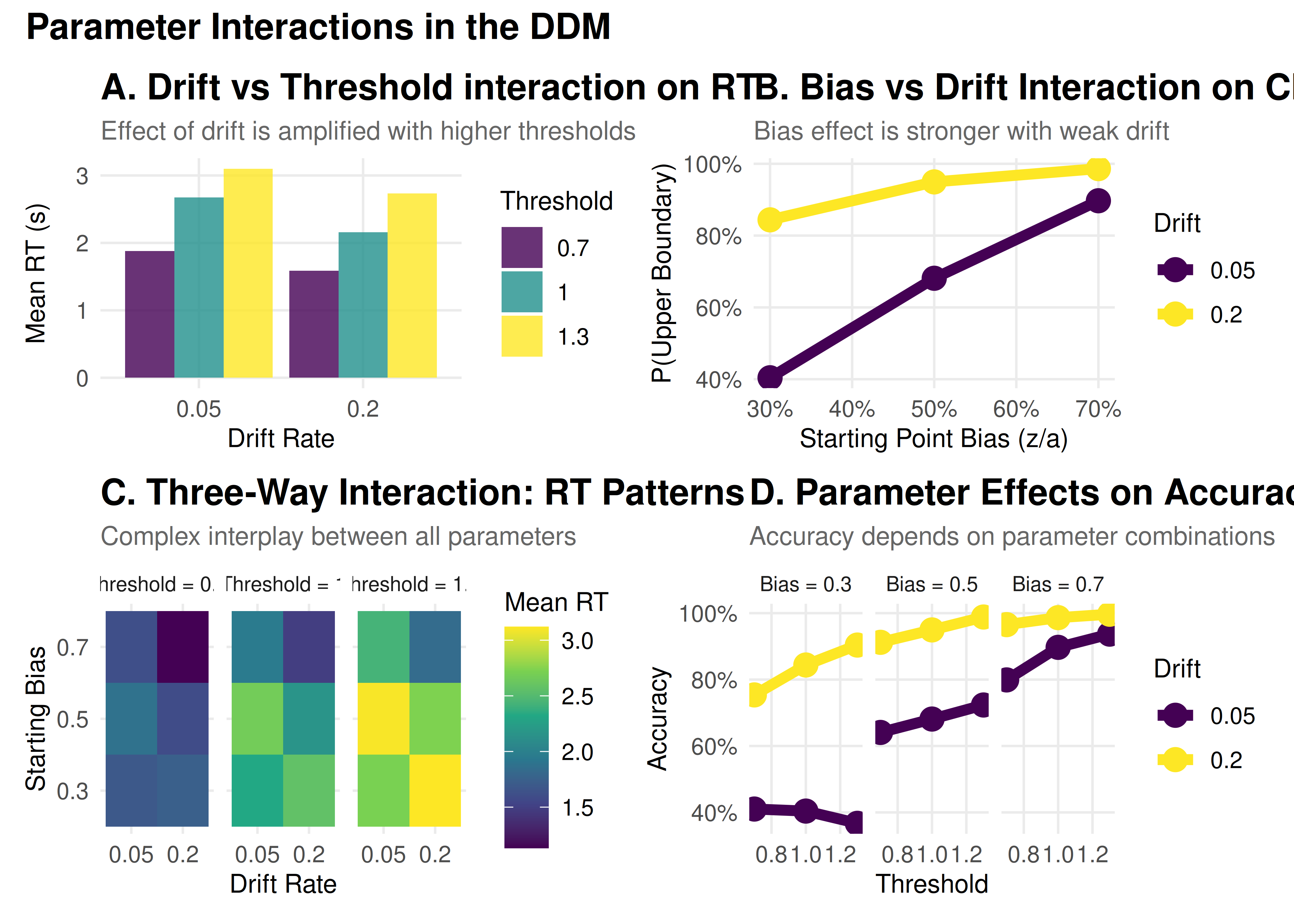

(p1 + p2) / (p3 + p4) +
 plot_annotation(
   title = "Parameter Interactions in the DDM",
   theme = theme(plot.title = element_text(size = 14, face = "bold"))
 )

Key Takeaways

  1. Parameters have distinct signatures: Each parameter affects the data in characteristic ways

    • Drift → Accuracy and mean RT

    • Threshold → Speed-accuracy tradeoff

    • Starting point → Choice bias and RT asymmetry

    • Variability → Distribution shape and skew

  2. Parameters interact: The effect of one parameter depends on others

    • Low drift amplifies bias effects

    • High thresholds amplify drift effects

    • Variability parameters modulate these relationships

  3. Practical interpretation requires context:

    • Task demands (speed vs accuracy emphasis)

    • Stimulus properties (difficulty, discriminability)

    • Individual differences (age, expertise, clinical status)

  4. Model validation is crucial: Always check that parameters make sense

    • Are values in reasonable ranges?

    • Do manipulations affect parameters as expected?

    • Are parameter correlations sensible?
